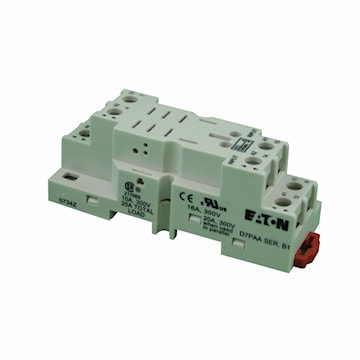

EATON D7PAA Relay Socket General Purpose Screw Clamp Terminal 300 V

Manufacturer:EATON
Manufacturer #:D7PAA
Documents Documents

Description

D7 Series Socket, Used with D7PR1, D7PR2, D7PF1, and D7PF2 Relays, Module size B, 300V nominal voltage, 16A nominal current, DIN rail/panel mount, Screw clamping wire connection, IP20 enclosure

Specifications

Brand Name Eaton Item Name Relay Socket
Type General Purpose Voltage Rating 300 V
Amperage Rating 16 A Number of Poles 2
Series D7 Conductor Size (2) 12/14 AWG
Mounting Type DIN Rail/Panel Terminal Type Screw Clamp
Enclosure Type IP20 Dimensions 3.33 in L x 1.18 in W x 1.18 in H
For Use With D7PR1, D7PR2, D7PF1, D7PF2 Plug-In Relays Standards UL Listed File Number E65657, E37317, cRUus, CSA File Number LR217017, LR217069, RoHS Compliant, CE Marked
Application For Commercial, Institutional Buildings and Structures UPC 782116103669
