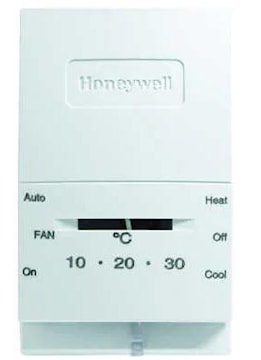

HONEYWELL T834N1010/U Thermostat Low Voltage, Non-Programmable 0.02 - 1 A, 20/30 VAC

Manufacturer #:T834N1010/U


Mercury free 1heat/1cool stage thermostat for single stage low voltage systems. Meets all current and future mercury-free thermostat compliance needs with Honeywell's Mercury-Free Econostat. With a sleek, attractive appearance, the Mercury-Free Econostat is the perfect electromechanical replacement choice. Integrated thermometer and temperature setting scale. Precise Snap-action switch. Mount directly on wall or outlet box. Includes dealer logo pocket.


Brand Name Honeywell Item Name Thermostat
Type Low Voltage, Non-Programmable Control Range 7 - 32 °C
Switch Action SPDT Switch Type Snap
Terminal Designations R, Rc, W, Y, G, O, B Voltage Rating 20/30 VAC
Amperage Rating 0.02 - 1 A Accuracy +/-2 °F
System Switching Heat-Off-Cool, Auto-On User Interface Manual
Sensor Type Bi-Metal Number of Stages 1 Heat/1 Cool
Mounting Type Vertical Color Premier White
Dimensions 2-7/8 in W x 1-3/8 in D x 4-3/4 in H Includes Dealer Logo Pocket
Application For Conventional Systems and Heat Pumps with No Auxiliary Heat
