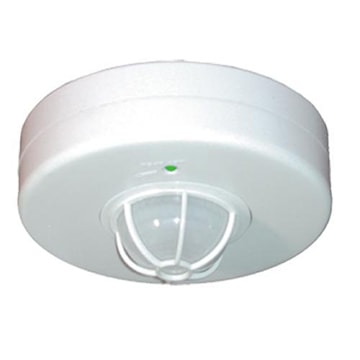

RC LIGHTING LOS2500/120RCL Occupancy Sensor 3-Detector 120 V, White

Manufacturer:RC LIGHTING
Manufacturer #:LOS2500/120RCL


Super Ceiling Sensor has 3 detectors for triple overlapping coverage to catch small movements. LED testing and operation Indicator. Maximum coverage - 360 or hallway models. Relay and sensor all in one unit reduces installation costs. Can be wired in parallel. Compatible with program start ballasts.


Brand Name RC Lighting Item Name Occupancy Sensor
Type 3-Detector Voltage Rating 120 V
Amperage Rating 16 A Viewing Angle 360°
Coverage Area 2152 ft² Color White
Mounting Type Ceiling Maximum Load Capacity 2000 W Incandescent/Fluorescent at 120 V
Response Time 10 sec - 15 min Terminal Connection Wired
Dimensions 2-1/4 x 1-1/4 x 4-5/8 in For Use With Program Start Ballasts
