kilgecct2

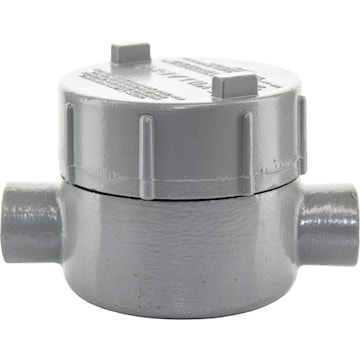

HUBBELL CANADA ULC GECCT-2 TYPE C EXPRF BOX 3/4
kilgecct2
HUBBELL CANADA ULC GECCT-2 TYPE C EXPRF BOX 3/4
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:GECCT-2
Description
GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Water shedding cover – suitable for wet locations when mounted in upright position
External cover threads on body protecting conductors from damage during pulling
No pinching of conductors during cover installation
Taper threaded hubs to provide ground continuity
Smooth integral hub bushing to protect conductor insulation when pulling
Internally threaded cover openings for additional wiring room
Covers furnished with boxes
Weather-resistant finish
Specifications
| Brand Name | Killark | Sub Brand | Killark |
| Item Name | Type C Outlet Body with Cover | Type | Aluminum outlet body with cover |
| Hub Size | 3/4 in | Trade Size | 3/4 in |
| Cubic Capacity | 18 in³ | Material | Copper-Free Aluminum |
| Finish | Gray/Powder Epoxy Paint | Series/Model | GEC Series |
| Dimensions | 5-5/16 in W x 3-5/8 in D x 3-11/16 in H | Standards | CSA Certified, UL Listed |
| Application | For Use in Hazardous Locations | UPC | 783936210032 |
