LEGRAND VC57243G Raceway Outlet Box Single-Channel, Duplex Receptacle, Grounding Vertical, Horizontal Ivory
wirvc57243g
LEGRAND VC57243G Raceway Outlet Box Single-Channel, Duplex Receptacle, Grounding Vertical, Horizontal Ivory
Manufacturer:LEGRAND
Manufacturer #:VC57243G
Description

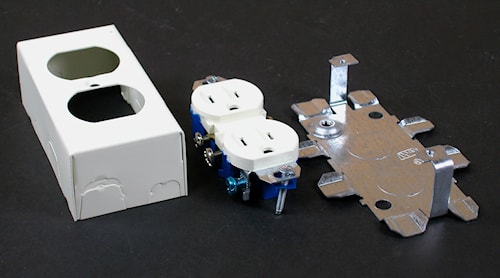

Duplex grounding receptacle (NEMA 5 15R) and box fitting. Accommodates 15 A (NEMA 5 15R) or 20 A (NEMA 5 20R) duplex devices in place of duplex grounding receptacle included. Cover has twistouts for 500 and 700 series raceway on each end and sides. Twistouts on ends of box permit running raceway close to interior trim. Base has 1/2 inch trade size KOs.
Specifications
| Brand Name | Wiremold | Sub Brand | Wiremold |
| Item Name | Raceway Outlet Box | Type | Single-Channel, Duplex Receptacle, Grounding |
| Length | 4-1/8 in | Width | 2 in |
| Depth | 1-3/8 in | Material | Steel |
| Color | Ivory | Mounting Type | Vertical, Horizontal |
| Series/Model | 500/700 | NEMA Rating | NEMA 5-15R |
| Cable Entry | 1/2 in Knockout | For Use With | 500 and 700 Series Raceway |
| Standards | CSA Certified, RoHS Compliant | Application | For 125 V 15 A Applications |
| UPC | 786776048001 |
Packages
| 1 - rarr_unit_1 | 5 - rarr_unit_2 |
