cuhxtcf032c10a
EATON INDUSTRIES (CANADA) CO XTCF032C10A None IEC Contactor Full Voltage Non-Reversing 4 P, 32 A,
cuhxtcf032c10a
EATON INDUSTRIES (CANADA) CO XTCF032C10A None IEC Contactor Full Voltage Non-Reversing 4 P, 32 A,
Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:XTCF032C10A
Description

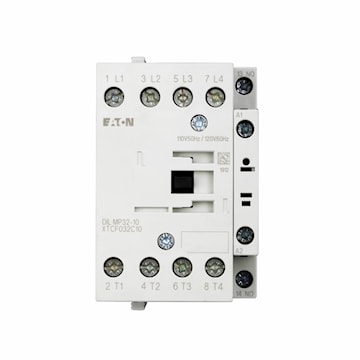

Eaton XT IEC contactor, 32A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 32A, Frame C, 45 mm, 50-60 Hz, 7.5, 7.5, 10, 15 hp (3PH @200, 230, 460, 575 V), Four-pole, Non-reversing, , Screw terminals, FVNR
Specifications
| Brand Name | Eaton | Sub Brand | None |
| Item Name | IEC Contactor | Type | Full Voltage Non-Reversing |
| Coil Voltage | 110 VAC at 50 Hz, 120 V at 60 Hz | Phase | 3 |
| Contact Configuration | 1 NO | Number of Poles | 4 |
| Terminal Connection | Screw | Dimensions | 5.4331 in L x 2.2835 in W x 3.3465 in H |
| Series/Model | XT IEC | Amperage Rating | 32 A |
| Frequency Rating | 50/60 Hz | HP Rating | 7.5 hp at 230/200 V, 10 hp at 460 V, 15 hp at 575 V |
| Frame Size | 45 mm | Standards | UL Listed, EN 60947, IEC 60947, CSA Certified, CE Certified, RoHS Compliant |
| Application | For Electrical Assemblies, Panels and EOEMs | UPC | 015081093629 |
