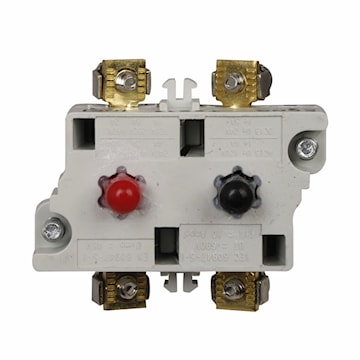

EATON 10250T47 Contact Block SPST, 1 NO, 1 NC 30.5 mm Size Pressure, Screw Terminal

Manufacturer #:10250T47


Eaton 10250T pushbutton contact block, 10250T series, Special Function Contact Block, 1ECNO-1NC, Pressure terminal


Brand Name Eaton Item Name Contact Block
Type Pushbutton accessory Voltage Rating 120 - 230 VAC, 120 VDC
Contact Configuration SPST, 1 NO, 1 NC Number of Poles 2
Series 10250T Size 30.5 mm
Amperage Rating 3 A NEMA Rating NEMA 4X
Terminal Type Pressure, Screw Dimensions 1.9 in L x 1.3 in W x 2.2 in H
For Use With 30.5 mm Heavy Duty Illuminated Push Button Switch Standards UL Listed, CSA Certified, CE Marked
Application For Stationary Machinery and Equipment Outside Factory UPC 782113443072
