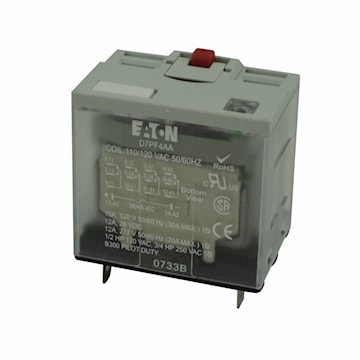

EATON D7PF4AA General Purpose Relay General-purpose Relay 15 A, 120 VAC

Manufacturer:EATON
Manufacturer #:D7PF4AA

Description

D7 Series General Purpose Plug-In Relay, Full featured cover, 120V coil, 2220 Ohms resistance, Plug-in terminal, 4PDT contact configuration, 15A contact rating, Silver alloy contacts, IP40 enclosure

Specifications

Brand Name Cutler Hammer Type General-purpose Relay
Contact Configuration 4PDT Dimensions 1.5400 IN X 1.6000 IN X 1.1000 IN
Standards UL Listed file E65657,UL Listed file E37317,CSA file No. LR217069,CSA file No. LR217017,cRUus,CE Marked,RoHS Compliant Application Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
UPC 782116484973
