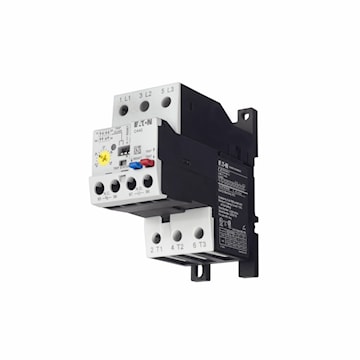

EATON C440A1A045SAX Overload Relay Electronic, Standard, Automatic/Manual Reset

Manufacturer #:C440A1A045SAX
Documents Documents


Electronic overload relay (EOL) is the most compact, highfeatured, economical product in its class. Designed on a global platform, the new EOL covers the entire power control spectrum including NEMA, IEC and DP contactors. The NEMA and DP versions are offered with the C440 designation while the IEC offering has the XT designation. The electronic design provides reliable, accurate and value driven protection and communications capabilities in a single compact device. It is the flexible choice for any application requiring easy-touse, reliable protection.


Brand Name Eaton Item Name Overload Relay
Type Electronic, Standard, Automatic/Manual Reset Class Class 10A, 10, 20, 30
Series/Model C440 Overload Amperage 9 - 45 A
Frame Size 45 mm Dimensions 4.32 in L x 1.8 in W x 3.8 in H
For Use With Separate Mount Contactor Standards CSA, CE Certified, UL Listed
Application For Commercial, Institutional Buildings, Structures UPC 786685412375
