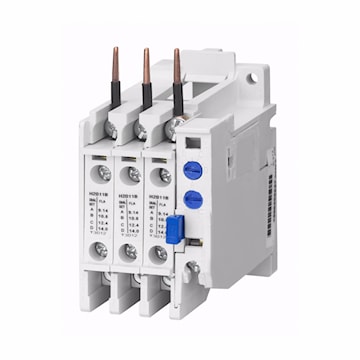

EATON C306DN3B NEMA Thermal Overload Relay Trip Free Mechanism, Automatic/Manual Reset 1 NO, 1 NC 20 - 39 A, 32 A (Terminal),

Manufacturer #:C306DN3B


NEMA Freedom Thermal Overload Relay, 20 - 39A, Three-pole, NEMA Size 00, 0, IEC Size A-F , Panel/DIN Rail Mounted or Starter Replacement mounting - C306DN3B


Brand Name Eaton Item Name NEMA Thermal Overload Relay
Type Trip Free Mechanism, Automatic/Manual Reset Voltage Rating 600 VAC
Contact Configuration 1 NO, 1 NC Number of Poles 3
Amperage Rating 20 - 39 A, 32 A (Terminal) Wire Size 14-6 AWG Solid or Stranded
Dimensions 4.0000 IN X 4.0000 IN X 3.7500 IN Mounting DIN Rail/Panel
Enclosure Type NEMA Size 00, 0 For Use With GST00-160 Fuse Disconnector, CE or CN Non-Reversing and Reversing Contactors
Includes Mounting Adapter Standards UL Listed, CSA Certified
Application For Overload Protection Upto 144 A UPC 782113973234
