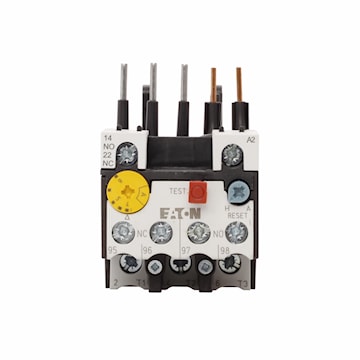

EATON XTOB006BC1 IEC Thermal Overload Relay Bimetallic 1 NO, 1 NC 4 - 6 A,

Manufacturer #:XTOB006BC1


The XT line of IEC motor thermal overload relays provides an efficient motor protection solution, available up to 630 A. XTOB units can be directly mounted to the contactor. Direct connect up to 250 A. Stand alone and CT type up to 630 A. Large thermal over current range. Test button. Manual/automatic selectable reset. NO-NC auxiliary as standard. Class 10 A (to 250 A).


Brand Name Cutler Hammer Item Name IEC Thermal Overload Relay
Type Bimetallic Class Class 10
Contact Configuration 1 NO, 1 NC Series/Model XTOB
Amperage Rating 4 - 6 A Terminal Type Screw
Frame Size 45 mm Mounting Direct
Standards UL Listed, CSA, CE Certified, RoHS Compliant, ATEX Compliant, IEC 60947, EN 60947 Application For Motor and Power Control Equipment
UPC 015082784397
