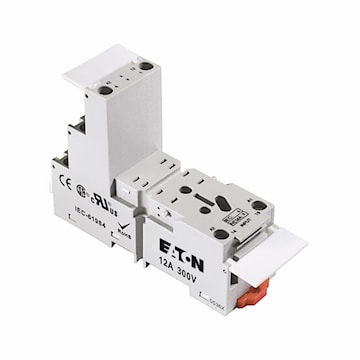

EATON D2PAL Relay Socket General Purpose 8 Pins Screw Terminal 300 V

Manufacturer:EATON
Manufacturer #:D2PAL
Documents Documents

Description

D2 Series Socket, Used with D2PR2, D2PF2 Relays, Module size B, 300V nominal voltage, 12A nominal current, DIN rail/panel mount, Elevator wire connection, QTY: 1, IP20 enclosure, Eight-pole

Specifications

Brand Name Eaton Item Name Relay Socket
Type General Purpose Voltage Rating 300 V
Amperage Rating 12 A Number of Pins 8
Number of Poles 8 Series D2
Conductor Size (2) 14/16 AWG Mounting Type DIN Rail/Panel
Terminal Type Screw Enclosure Type IP20
Dimensions 3 in L x 1 in W x 2-1/2 in H For Use With D2PR2, D2PF2 Plug-In Relays
Standards CSA Certified, UL, cRUus Listed, CE Certified, RoHS Compliant Application For Commercial, Institutional Buildings and Structures
UPC 786685215280
