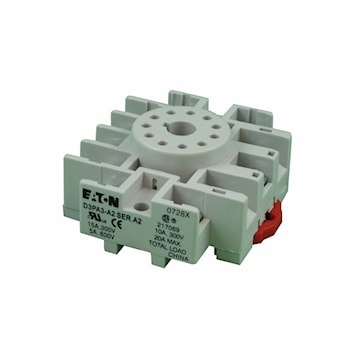

EATON D3PA3 Relay Socket General Purpose, Octal 11 Pins Screw Clamp Terminal 300/600 V
cuhd3pa3
EATON D3PA3 Relay Socket General Purpose, Octal 11 Pins Screw Clamp Terminal 300/600 V
Manufacturer:EATON
Manufacturer #:D3PA3
Description
Socket relay plug-in DIN/panel mount with screw terminals and clamping plates for use with D3PR/D3PF general purpose plug-in relays.
Specifications
| Brand Name | Eaton | Item Name | Relay Socket |
| Type | General Purpose, Octal | Voltage Rating | 300/600 V |
| Amperage Rating | 5/15 A | Number of Pins | 11 |
| Number of Poles | 3 | Series | D3 |
| Conductor Size | (2) 12/14 AWG | Mounting Type | DIN Rail/Panel, Screw |
| Terminal Type | Screw Clamp | Enclosure Type | IP20 |
| Dimensions | 1.6 in L x 0.97 in W x 2.12 in H | For Use With | D3PR3, D3PF3 and D3PR5 Plug-In Relays, TRFP Delay Relays |
| Standards | cRUus, UL Listed, CSA Certified, RoHS Compliant, CE Marked | Application | For Commercial, Institutional Buildings and Structures |
| UPC | 782114159774 |
