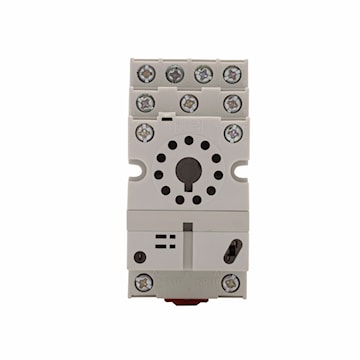

EATON D3PA7 Relay Socket Finger Safe, General Purpose, Octal 11 Pins Screw Clamp Terminal 600 VAC

Manufacturer:EATON
Manufacturer #:D3PA7

Description

D3 Series Socket, Used with D3PR3, D3PF3, and D3PR5 Relays, Module size A, 600V nominal voltage, 5A nominal current, DIN rail/panel mount, Screw clamping wire connection, QTY: 1, IP20 enclosure

Specifications

Brand Name Eaton Item Name Relay Socket
Type Finger Safe, General Purpose, Octal Voltage Rating 600 VAC
Amperage Rating 5 A Number of Pins 11
Number of Poles 3 Series D3
Conductor Size (2) 12/14 AWG Mounting Type DIN Rail/Panel, Screw
Terminal Type Screw Clamp Enclosure Type IP20
Dimensions 3.18 in L x 1-1/2 in W x 1.45 in H For Use With D3PR3, D3PF3, D3PR5 Plug-In Relays
Standards cRUus, UL Listed, CSA Certified, CE Marked, RoHS Compliant Application For Commercial, Institutional Buildings and Structures
UPC 782116199587
