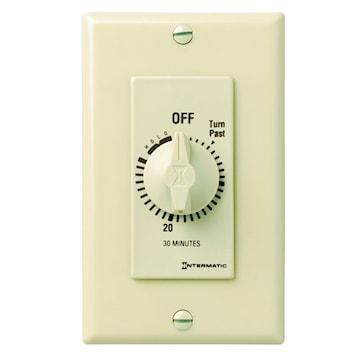

INTERMATIC INC FD30MH SPRING WOUND COUNTDOWN TIMER, DECORATOR STYLE, 125-277 VAC, 50/60 HZ, SPST, 30 MINUTE MAX, WITH HOLD, IVORY

Manufacturer:INTERMATIC INC
Manufacturer #:FD30MH
Documents Documents

Description

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Specifications

Brand Name Intermatic Type Decorator Spring Wound Auto-Off
Timing Range 0-30 min Contact Configuration 1 NO
Contact Rating 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) Amperage Rating 15 A
Frequency Rating 50/60 HZ Number of Poles 1
Mounting Wall Mount Standards cCSAus Certified, UL Listed, UL Recognized, HVACR
Application Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control UPC 078275185586
