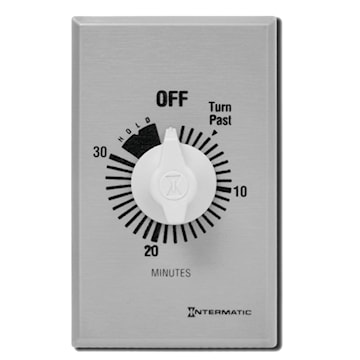

INTERMATIC FF30MH Analog Timer with Hold Commercial, Spring Wound, Auto-Off, Mechanical 0 - 30 min (1) SPST - 1 NO Natural

Manufacturer:INTERMATIC
Manufacturer #:FF30MH

Description

FF Series commercial auto-off timer is designed to replace any standard wall switch - single or multi-gang. This series of energy-efficient mechanical timers do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. Hold feature enables the user to override the automatic shut-off function.

Specifications

Brand Name Intermatic Item Name Analog Timer with Hold
Type Commercial, Spring Wound, Auto-Off, Mechanical Supply Voltage 125 - 277 VAC
Timing Range 0 - 30 min Contact Configuration (1) SPST - 1 NO
Contact Rating 7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive) Dimensions 2.79 in H X 1.6 in W X 1.19 in D
Amperage Rating 15 A Frequency Rating 50/60 Hz
Power Source 1 hp at 120 VAC, 2 hp at 240 VAC Number of Poles 1
Terminal Connection Teeter Type Material Plastic
Color/Finish Natural Mounting Wall
Standards cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC Application Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
UPC 078275184152
