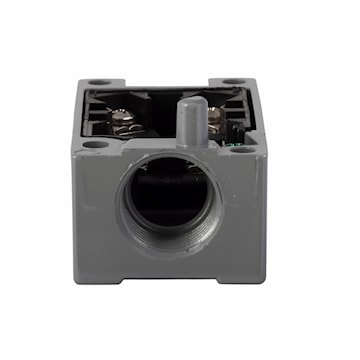

EATON INDUSTRIES (CANADA) CO E51RC Inductive Proximity Sensor Receptacle Assembled,Fiber Optic Sensor,Inductive,Proximity Sensor 120 VAC
cuhe51rc
EATON INDUSTRIES (CANADA) CO E51RC Inductive Proximity Sensor Receptacle Assembled,Fiber Optic Sensor,Inductive,Proximity Sensor 120 VAC
Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:E51RC
Description
Eaton E51 NEMA limit switch inductive proximity sensor, Assembled Inductive Proximity Fiber Optic Sensor, E51, Screw Terminals, 4-wire, 120 Vac
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor Receptacle |
| Type | Assembled,Fiber Optic Sensor,Inductive,Proximity Sensor | Connection | 1/2 in NPT |
| Output | 1 NO, 1 NC | Output Circuit Type | 4-Wire |
| Dimensions | 2.92 in L x 1.54 in W x 1.06 in H | Series/Model | E51 |
| Voltage Rating | 120 V | Degree of Protection | IP67 |
| NEMA Rating | NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 | Connection Type | Screw Terminal |
| Material | Die-Cast Zinc | Color | Gray |
| Mounting Type | Surface | Temperature Rating | -13 to 158 °F |
| For Use With | Assembled Inductive Proximity Fiber Optic Sensor and E51 Limit Switch Style Modular Sensor | Standards | CSA Certified, UL Listed |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory | UPC | 782113107202 |
