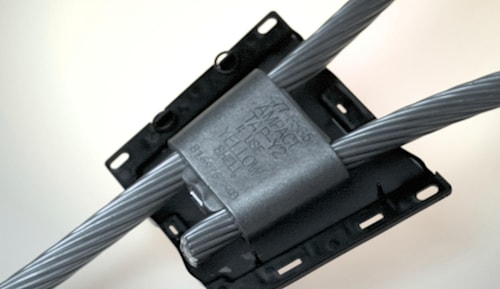

TYCO 600465 C-Tap Connector Medium, Insulated, Wedge 4/0-3/0 AWG

Manufacturer:TYCO
Manufacturer #:600465

Description

Tap connectors use the action of a metal wedge to secure the two conductors to be connected at opposing ends of the C-clamp. The wedge is inserted at a speed of about 40 m/s using the AMPACT connector tool. High-speed insertion is very effective in abrading all sliding surfaces and in disrupting surface oxide film to generate large numbers of contact spots in the electrical interfaces. The C–member remains attached through the residual elastic force developed in the clamp. This force is sufficiently large to maintain a low electrical contact resistance but is insufficient to cause conductor plastic flow and ensuring stress relaxation in the connector. The elastic force also helps prevent creepage by compensating for expansion and contraction of the assembly during thermal cycling. The presence of an inhibitor in the electrical interfaces protects electrical contact spots from corrosive attack during use.

Specifications

Brand Name TE Connectivity Item Name C-Tap Connector
Type Medium, Insulated, Wedge Voltage Rating 0 - 500 kV
Tap Conductor Size 4/0-3/0 AWG Color Code Blue
Material Aluminum Width 2.6 in
Height 1.62 in Temperature Rating -40 to 150 °F
Standards EU RoHS Directive with Phthalates Amendment 2011/65/EU, 2015/863/EU, RUS Approved, RoHS Compliant Application For Overhead Transmission and Distribution Connections

Packages

100 - rarr_unit_1
