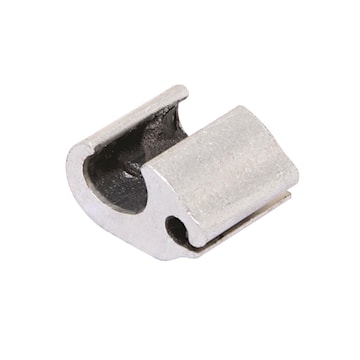

HUBBELL YPC2A8U Crimpit™ C-Tap Connector YPC-A-U 14 AWG Solid, 8 AWG Stranded Aluminum and Copper
burypc2a8u
HUBBELL YPC2A8U Crimpit™ C-Tap Connector YPC-A-U 14 AWG Solid, 8 AWG Stranded Aluminum and Copper
Manufacturer:HUBBELL
Manufacturer #:YPC2A8U
Description
Compact compression connector designed to tap small lighting wires from secondaries. Figure 6-shape separates run and tap, and minimizes galvanic corrosion.
Specifications
| Brand Name | Burndy | Sub Brand | Crimpit™ |
| Item Name | C-Tap Connector | Type | YPC-A-U |
| Run Conductor Size | 6-4 AWG ACSR, 6-2 AWG Compressed ACSR, 4-2 AWG Solid, 6-2 AWG Stranded Aluminum and Copper, 4-2 AWG Compressed Aluminum | Tap Conductor Size | 14 AWG Solid, 8 AWG Stranded Aluminum and Copper |
| Material | Copper | Finish | Bare |
| Series/Model | YPC-A-U Series | Length | 5/8 in |
| Width | 0.56 in | Height | 0.97 in |
| Standards | ROHS Compliant | Application | Combinations of Copper, Aluminum, ACSR, Compressed and Compact Conductors |
| UPC | 781810135686 |
Packages
| 1 - rarr_unit_1 | 100 - rarr_unit_2 | C - C |
