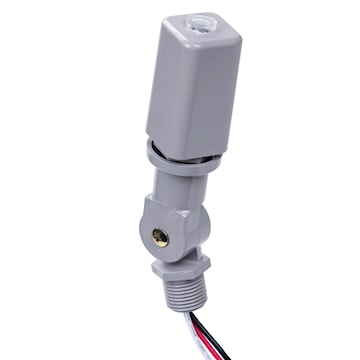

INTERMATIC INC EK4736S Photocontrol with Time Delay Function Cuboid, Electronic, Top Lens Swivel Mount
intek4736s
INTERMATIC INC EK4736S Photocontrol with Time Delay Function Cuboid, Electronic, Top Lens Swivel Mount
Manufacturer:INTERMATIC INC
Manufacturer #:EK4736S
Description
Electronic photo controls. 6 A electronic ballast. 1800 VA magnetic ballast. 1000 W tungsten. 2500 VAC dielectric strength. Swivel type mounting.
Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
15-year design life
Exceeds 10,000 ON/OFF switching cycles
Fail ON mode
Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
255 J MOV surge protection element
1â„2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
#18 AWG wire leads
