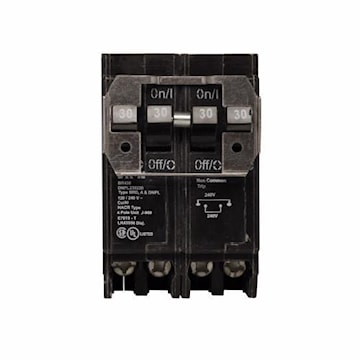

EATON INDUSTRIES (CANADA) CO DNPL230230 Quadplex™ Feeder Plug-in Circuit Breaker Type DNPL (4) 30 A, (1) 2 P, Plug-In
cuhdnpl230230
EATON INDUSTRIES (CANADA) CO DNPL230230 Quadplex™ Feeder Plug-in Circuit Breaker Type DNPL (4) 30 A, (1) 2 P, Plug-In
Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:DNPL230230
Description
Quad Breaker, Quadplex Independent Trip, (4) 30A, 14-4 AWG, 120/240V, 5 per shelf carton, (2) two-pole, 10 kAIC at 120/240V
Specifications
| Brand Name | Cutler Hammer | Sub Brand | Quadplex™ |
| Item Name | Feeder Plug-in Circuit Breaker | Type | Type DNPL |
| Number of Poles | (1) 2 | Interrupt Rating | 10 kAIC at 120/240 VAC |
| Amperage Rating | (4) 30 A | Voltage Rating | 120/240 VAC |
| Terminal Connection | Plug-In | Phase | 1 |
| Conductor Size | 14-4 AWG Aluminum/Copper | Trip Type | Thermal Magnetic, Long Time and Instantaneous, Non-Common |
| Dimensions | 3 in L x 3 in W x 2 in H | For Use With | CPM/CPL/CBRPM/CBRPL Loadcenters |
| Standards | UL Listed, CSA Certified | Application | For Residential and Light Commercial Distribution |
| UPC | 622588019405 |
