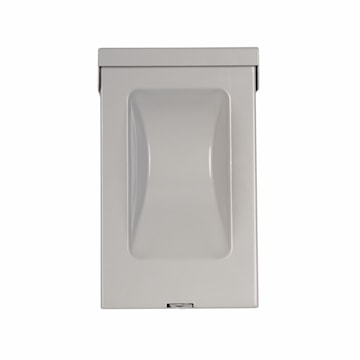

EATON DPB222R Air Conditioning, Non-Fusible Disconnect Switch 60 A, 240 VAC, 2 P, Painted Steel NEMA 3R Outdoor

Manufacturer:EATON
Manufacturer #:DPB222R

Description

Eaton Air Conditioning Disconnect, Molded case switch, 60 A, 240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray

Specifications

Brand Name Cutler Hammer Item Name Disconnect Switch
Type Air Conditioning, Non-Fusible Voltage Rating 240 VAC
Amperage Rating 60 A Load Rating 10 hp at 240 VAC 1 Phase
Interrupt Rating 10 kA Number of Poles 2
Number of Wires 2 Wire Size 14-3 AWG
Housing Material Painted Steel Color Gray
NEMA Rating NEMA 3R Outdoor Dimensions 5.3 x 3.74 x 8.6 in
Standards UL Listed,CSA Certified Application For HVAC
UPC 782114205686
