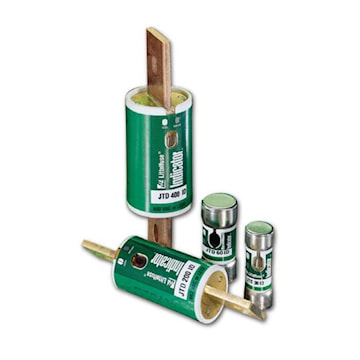

FUSETEK JTD-070ID Powr-Pro® Cartridge Fuse Time-Delay, Current-Limiting Class J 70 A, 600 VAC/300 VDC

Manufacturer:FUSETEK
Manufacturer #:JTD-070ID

Description

The Littelfuse® POWR-PRO® JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety. Applications are fused combination motor controllers to provide IEC Type II (no damage) motor branch-circuit short-circuit and ground fault protection. Motor control centers. Transformer protection. Protection for UL Listed series-rated molded case circuit breaker panels. General purpose circuits: mains, feeders and branch circuits: especially when space is at a premium.

Specifications

Brand Name Littelfuse Sub Brand Powr-Pro®
Item Name Cartridge Fuse Type Time-Delay, Current-Limiting
Series JTD Voltage Rating 600 VAC/300 VDC
Amperage Rating 70 A Interrupt Rating 200 kA at AC, 20 kA at DC
Fuse Class Class J Mounting Type Holder
Terminal Connection Knife Blade Element Type Dual
Indication Blown-Fuse Contact Material Brass
Construction Melamine Dimensions 1-1/8 in dia x 4-5/8 in L
Standards UL File Number E81895, CSA File Number LR29862, CE Certified Application For Fused Combination Motor Controllers and Motor Control Centers, Transformer Protection, Protection For Series Rated Molded Case Circuit-breaker Panels, General Purpose Circuits
