levdos02lw

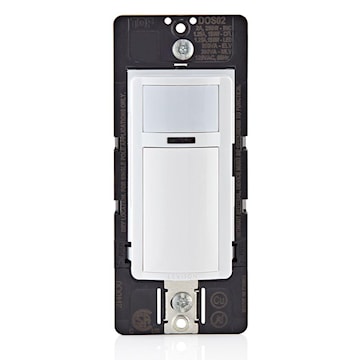

LEVITON MANUFACTURING DOS02-LW DECO OCC SENSOR 1P2A
levdos02lw
LEVITON MANUFACTURING DOS02-LW DECO OCC SENSOR 1P2A
Manufacturer:LEVITON MANUFACTURING
Manufacturer #:DOS02-LW
Description
Decora Occupancy Motion Sensor Light Switch. 180° PIR Automatic-on Wallbox Sensor, single pole, 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC – White
Specifications
| Brand Name | Leviton | Sub Brand | RESIDENTIAL OCCUPANCY SENSORS |
| Item Name | Occupancy Sensor | Type | In-Wall Switch, Auto-On/Off, Decora Motion |
| Grade | Residential | Voltage Rating | 120 V |
| Amperage Rating | 2 A | Number of Poles | 1 |
| Sensor Type | Passive Infrared | Viewing Angle | 180° |
| Coverage Area | 900 ft² | Color | White |
| Mounting Type | Wall | Maximum Load Capacity | 150 W LED/CFL, 250 W Incandescent/Halogen |
| Response Time | 1 min, 5 min, 10 min, 20 min | Lens Type | Green and Red LED |
| Standards | CSA Certified, FCC, Title 20, Title 24 Compliant | Application | Ideal for Pantries, Closets, Laundry Rooms and Basements |
| UPC | 078477225899 |
