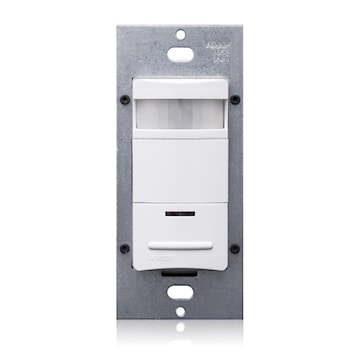

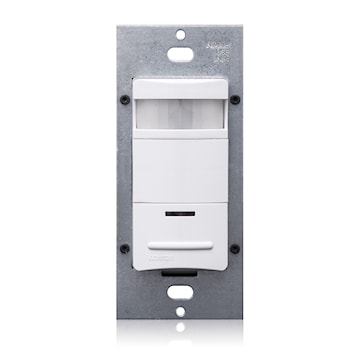

LEVITON ODS10-IDW Decora® Occupancy Sensor Presence Detector, Adjustable, Constant Light Control 277 VAC, 120/230/277 VAC, White

Manufacturer #:ODS10-IDW
Documents Documents


Decora® passive infrared wall switch occupancy sensor, Single pole, 2100 square feet coverage. For use with 1200 VA at 120 V and 2700 VA at 277 V fluorescent, 800 W at 120 V incandescent, 1/4 HP at 120 V motor, 30 sec to 30 min time adjustments. Convenient pushbutton provides manual ON/OFF light switching at any time, Commercial applications including small offices, conference rooms, lounges, classrooms.


Brand Name Leviton Sub Brand Decora®
Item Name Occupancy Sensor Type Presence Detector, Adjustable, Constant Light Control
Grade Commercial Voltage Rating 277 VAC, 120/230/277 VAC
Amperage Rating 10 A Number of Poles 1
Sensor Type Wall Switch Sensing Distance 12.19 m Front, 9.14 m Side
Viewing Angle 180° Color White
Mounting Type Wall Frequency Rating 50/60 Hz
Maximum Load Capacity 100 W at 120 V, 250 W at 277 V, 800 W Switching Response Time 30 min
Dimensions 1-3/4 in W x 1.85 in D x 46 in H Mounting Height 1.22 m
Temperature Rating 1 - 50 °C Standards UL Listed, CSA Certified, CEC, Title 24, FCC Regulations, NOM
Application Commercial UPC 078477010181
