Dryden
lev5320w

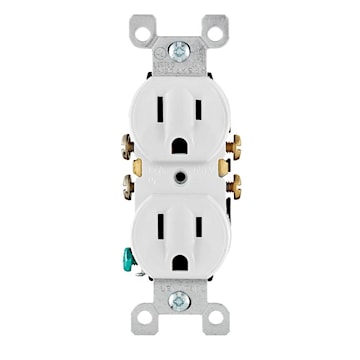

LEVITON 5320-WCP Outlet Straight Blade Duplex Receptacle 15 A, 5-15R White

Manufacturer:LEVITON
Manufacturer #:5320-WCP

Description

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, With Ears Duplex Receptacle, Straight Blade, Residential Grade, Grounding, All Screws Backed Out Contractor Pack, Quickwire Push-In & Side Wired, Steel Strap, - White.

Specifications

Brand Name Leviton Sub Brand RESIDENTIAL RECEPTACLES
Item Name Straight Blade Duplex Receptacle Type Outlet
Grade Commercial Size 4.2 H x 1.33 W x 19 D IN
Voltage Rating 125 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
Connection Type Quickwire Push-In and Side Wired NEMA Rating 5-15R
Conductor Size 14 AWG Material Thermoplastic
Color White Frequency Rating 50/60 Hz
Terminal Connection Screw Grounding Grounding
Dimensions 38.7 mm W x 29 mm D x 103.2 mm H Mounting Type Wallplate, Flush
Temperature Rating -40 °C to 60 °C Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Standards UL 498, 1561, CSA File Number LR406, NOM 057 Certified Application Commercial
UPC 078477151426
