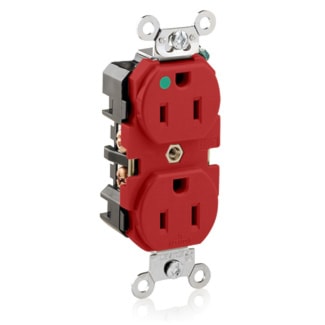

LEVITON MANUFACTURING 8200-R 2-Outlet, 1-Unit Straight Blade Duplex Receptacle 15 A, 5-15R Red
lev8200r
LEVITON MANUFACTURING 8200-R 2-Outlet, 1-Unit Straight Blade Duplex Receptacle 15 A, 5-15R Red
Manufacturer:LEVITON MANUFACTURING
Manufacturer #:8200-R
Description
Leviton hospital grade receptacle undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools. Self grounding, Back and side wired.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | 2-Outlet, 1-Unit |
| Grade | Hospital/Commercial | Size | 46 H x 1.53 W x 1.11 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Back and Side Wire |
| NEMA Rating | 5-15R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | Red |
| Finish | Matt, Nickel Plated | Phase | 1 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.53 in W x 1.11 in D x 46 in H |
| Mounting Type | Screw, Wall Box, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | NEMA WD-1, WD-6, ANSI C73, NOM 057 Certified, CSA C22.2 No. 42, CSA File Number 152105, UL Fed Spec WC-596 (File E13399), UL Listed 498 HG (File E13399) |
| Application | Commercial | UPC | 078477818602 |
