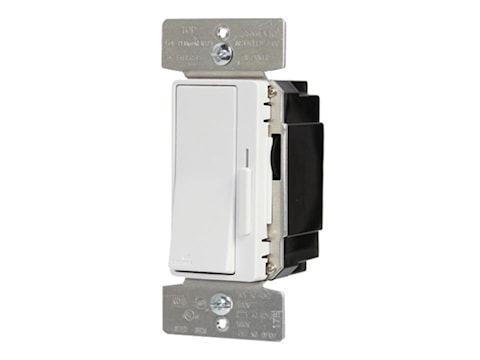

COOPER WBSD-010DEC-C1 0-10V Decorator Dimmer Wallstation Decorator Dimmer 10 A at 120 V, 6 A at 277 V, 120/277 V, 1200 W at 120 V, 1660 W at 277 V Light Almond/White/Ivory

Manufacturer:COOPER
Manufacturer #:WBSD-010DEC-C1

Description

Decorator Dimmer 0 to 10 V, 120/277 VAC with white, ivory and almond faceplate color kit. The 0-10V decorator dimmer provides full-range classic linear-slide dimming for 0-10 Volt compatible dimmable light sources. These units are ideal for light commercial applications and are compatible with decorator style devices and wall plates. Units feature a preset “ON/OFF” switch that automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both single-pole (one location) and 3-way (multilocation) applications.

Specifications

Brand Name Cooper Industries Item Name Decorator Dimmer
Type 3-Way Voltage Rating 120 - 277 VAC
Frequency Rating 60 Hz Amperage Rating 10 A at 120 V, 6 A at 277 V
Power Rating 1200 W at 120 V, 1660 W at 277 V Number of Poles 1
Color/Finish Light Almond/White/Ivory Action Slide/On/Off
Conductor Size 16 AWG Operating Temperature -20 to 70 °C
Dimensions 3.2 in L x 2.75 in W x 5 in H Mounting Surface
Special Features 0 - 10 V Dimming Includes Faceplate Color Kit
Standards UL Listed Application For Lighting, Light Commercial, Greengate Lighting Control System
UPC 080083735266
