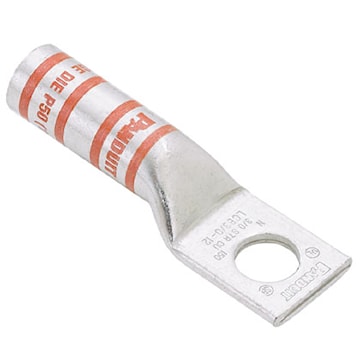

PANDUIT LCB1/0-12-X Pan-Lug™ Compression Lug 1 Holes Copper 0.5 in Stud size

Manufacturer:PANDUIT
Manufacturer #:LCB1/0-12-X
Documents Documents

Description

One-hole, long barrel lug, 1/0 AWG wire, 1/2 stud hole.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name Compression Lug Type Type LCB
Number of Holes 1 Stud Size 0.5 in
Barrel Length 1.44 in Overall Length 2.92 in
Color Code Pink Material Copper
Voltage Rating 35000 V Barrel Type Long
Tongue Type Standard Finish Tin Plated
Standards C22.2 No. 65-13, UL 486A-486B File No. E52164 UPC 074983382392

Packages

1 - rarr_unit_1 10 - rarr_unit_2 100 - rarr_unit_3
