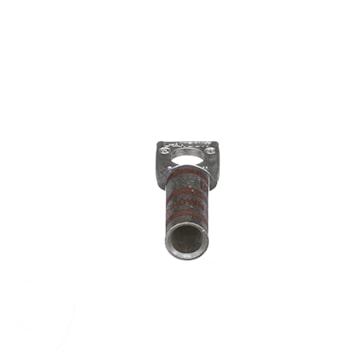

PANDUIT LCB2-56-Q Pan-Lug™ Compression Lug 1 Holes Copper 0.3125 in Stud size

Manufacturer:PANDUIT
Manufacturer #:LCB2-56-Q
Documents Documents

Description

The LCB2-56-Q Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name Compression Lug Type Type LCB
Number of Holes 1 Stud Size 0.3125 in
Barrel Length 1.16 in Overall Length 2.27 in
Color Code Brown Material Copper
Voltage Rating 35000 V Barrel Type Long
Tongue Type Standard Finish Tin Plated
Standards C22.2 No. 65-13, UL 486A-486B File No. E52164 UPC 074983901814

Packages

1 - rarr_unit_1 25 - rarr_unit_2 100 - rarr_unit_3
