Manufacturer:PANDUIT
Manufacturer #:LCD10-14A-L
Description

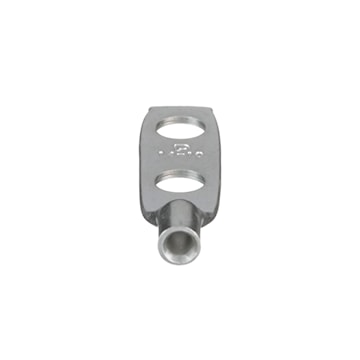

The LCD10-14A-L Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Compression Lug | Type | Compression Lug |
| Number of Holes | 2 | Stud Size | 1/4 in |
| Barrel Length | 0.38 in | Overall Length | 1.78 in |
| Color Code | Gray | Material | Copper |
| Series/Model | LCD | Voltage Rating | 35000 V |
| Barrel Type | Standard with Inspection Window | Tongue Type | Standard |
| Finish | Tin Plated | Standards | CSA Certified, UL Listed |
| UPC | 074983972340 |
Packages
| 1 - rarr_unit_1 | 50 - rarr_unit_2 | 100 - rarr_unit_3 |
