pcclcd2-38d-q
PANDUIT LCD2-38D-Q LUG
pcclcd2-38d-q
PANDUIT LCD2-38D-Q LUG
Manufacturer:PANDUIT
Manufacturer #:LCD2-38D-Q
Description

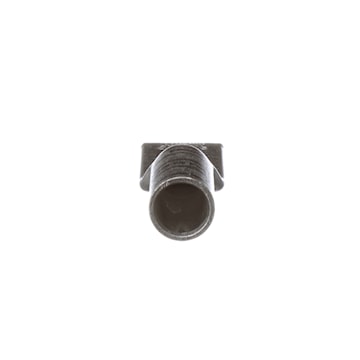

The LCD2-38D-Q Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Compression Lug | Type | Compression Lug |
| Number of Holes | 2 | Stud Size | 3/8 in |
| Barrel Length | 0.88 in | Overall Length | 3 in |
| Color Code | Brown | Material | Copper |
| Series/Model | LCD | Voltage Rating | 35000 V |
| Barrel Type | Standard with Inspection Window | Tongue Type | Standard |
| Finish | Tin Plated | Temperature Rating | 90 °C |
| Standards | CSA Certified, UL Listed | UPC | 074983383016 |
Packages
| 1 - rarr_unit_1 | 25 - rarr_unit_2 | 100 - rarr_unit_3 |
