PANDUIT LCD8-14A-L LUG

Manufacturer:PANDUIT
Manufacturer #:LCD8-14A-L
Documents Documents

Description

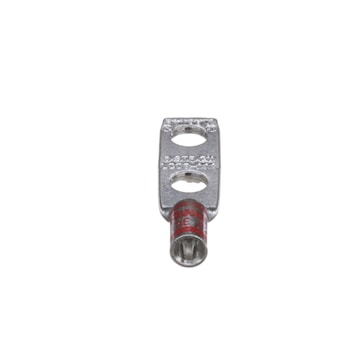

The LCD8-14A-L Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name 2-Hole Compression Lug Type Type LCD
Conductor Size 14-8 AWG Number of Holes 2
Stud Size 1/4 in Barrel Length 0.56 in
Tongue Size 0.48 in W x 0.07 in T Overall Length 1.97 in
Color Code Red Material Copper
Voltage Rating 35000 V Barrel Type Standard with Inspection Window, Straight
Tongue Type Standard Finish Tin Plated
Mounting Type Hole Standards California Proposition 65 Warning
UPC 074983383160

Packages

1 - rarr_unit_1 50 - rarr_unit_2 100 - rarr_unit_3
