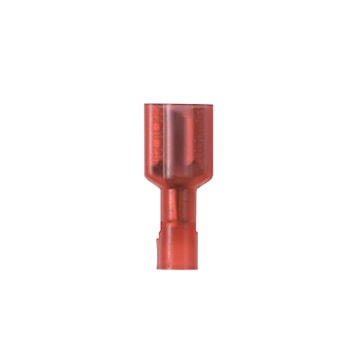

PANDUIT EDNF18-250FIB-L StrongHold™ Insulated Female Disconnect Terminal Loose-Piece 22-18 AWG Copper
pccednf18-250fib-l
PANDUIT EDNF18-250FIB-L StrongHold™ Insulated Female Disconnect Terminal Loose-Piece 22-18 AWG Copper
Manufacturer:PANDUIT
Manufacturer #:EDNF18-250FIB-L
Description
StrongHold™ Female Disconnect, nylon fully insulated, 22 - 18 AWG, .250 X .032 tab size.
Specifications
| Brand Name | Panduit | Sub Brand | StrongHold™ |
| Item Name | Insulated Female Disconnect Terminal | Type | Loose-Piece |
| Conductor Size | 22-18 AWG | Tab Size | 1/4 in |
| Width | 0.35 in | Voltage Rating | 600 V |
| Insulation Material | Nylon | Material | Copper |
| Finish | Tin Plated | Length | 0.28 in |
| Insulation Diameter | 0.13 in | Color | Red |
| Barrel Type | Butted Seam | Temperature Rating | 125 °C |
| For Use With | CT-100A, CT-600-A, CT-1525, CT-2300/ST, CT-2500/L Crimp Tool | Standards | CSA, E78522, LR31212, UL Listed |
| UPC | 074983279968 |
Packages
| 25 - rarr_unit_1 | 100 - rarr_unit_2 | 500 - rarr_unit_3 |
